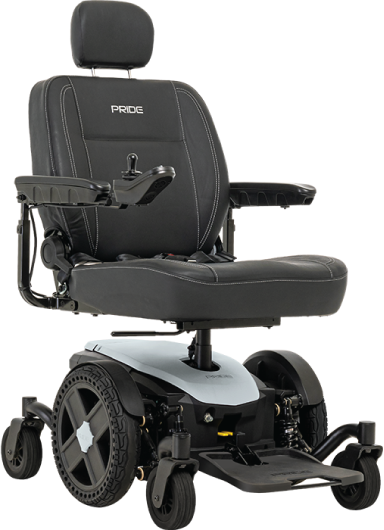

Jazzy® EVO 614HD
Jazzy® EVO 614HD
FULFILLMENT OPTIONS
DESCRIPTION
The Jazzy® EVO 614HD provides the freedom to navigate small spaces indoors along with the ability to handle terrain, so thresholds, transitions, and grassy fields feel smoother than ever before. The Jazzy EVO 614HD features perforated 13.75” drive wheels and a maximum weight capacity of 450 lbs.
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
- 450 lbs. weight capacity
- Up to 4.88 mph
- 22” turning radius
- Up to 13 miles per charge at 450lbs, up to 21.5 miles per charge at 200lbs.
- New! Depth-adjustable, limited recline memory foam high-back seat with headrest and single heavy-duty seat post allows the user to swivel
- New! 13.75” perforated drive tires
- New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
- New! Removable matte finish color through shrouds and 6-colors
- Flip-up, height adjustable foot platform
- Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- In-line joystick mount
- Convenient access to the controller and batteries while the user remains seated
- HCPCS Code: Group 2: Heavy-Duty (K0824/K0825)
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® EVO 614HD |
| Weight Capacity | 450 lbs. |
| Turning Radius3 | 22" |
| Width3 | 25.75" |
| Length3 | 40.5" |
| Maximum Speed2 | Up to 4.88 mph |
| Ground Clearance3 | 3" |
| Front Wheels | 6" casters |
| Drive Wheels | 13.75" solid |
| Rear Wheels | 6" casters |
| Drivetrain | Two motor, in-line, HD motors |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Full independent front and rear Active-Trac® (ATX) Suspension |
| Standard Seat Sizes | High-back, memory foam Black vinyl 18"x18"-20", 20"x18"-20", 22"x20-"-22" |
| Seat-to-Floor Range | 22"-24" |
| Seat Weight(s)3 | 57.8 lbs |
| Maximum Seat Size | 22"W-22"D |
| Power Elevating Seat | NA |
| Standard Electronics | 60A, Dynamic Linx |
| Battery Size(s)4 | (2) NF-22 |
| Battery Weight6 | 36-lbs. each |
| Battery Charger | 5-amp, off-board |
| Per Charge Range2,3,5 | 13 miles at 450 lbs., 21.5 miles at 200 lbs. |
| Weight of Heaviest Piece7 | 125.7 lbs.(base) |
| Total Weight | 255.5 lbs. w/ batteries and seat |
| HCPCS Code | Group 2: Heavy-duty (K0824/K0825) |
| Warranty | Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited |
| Colors | Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte) |
| Notes: 1Jazzy® Power Chairs are FDA class II Medical Devices designed to aid individuals with mobility impairments 2Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 3Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%). 4AGM or gel cell type required. 5Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 6Battery weight may vary based on manufacturer. 7Weight includes base, seat and batteries. |
|
HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement The information contained herein is correct at time of publication; we reserve the right to alter specifications without prior notice. NOTE: All specifications subject to change without notice. The information contained herein is correct at the time of publication, we reserve the right to alter specifications without prior notice. |
